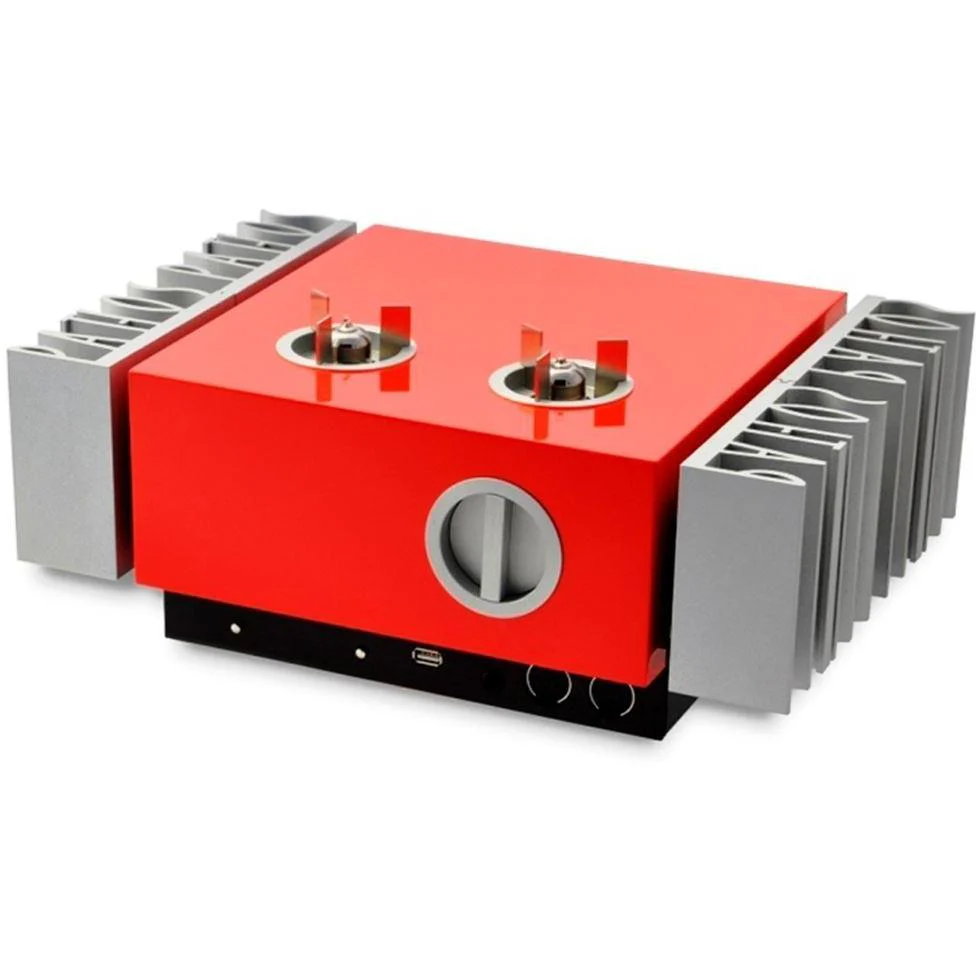

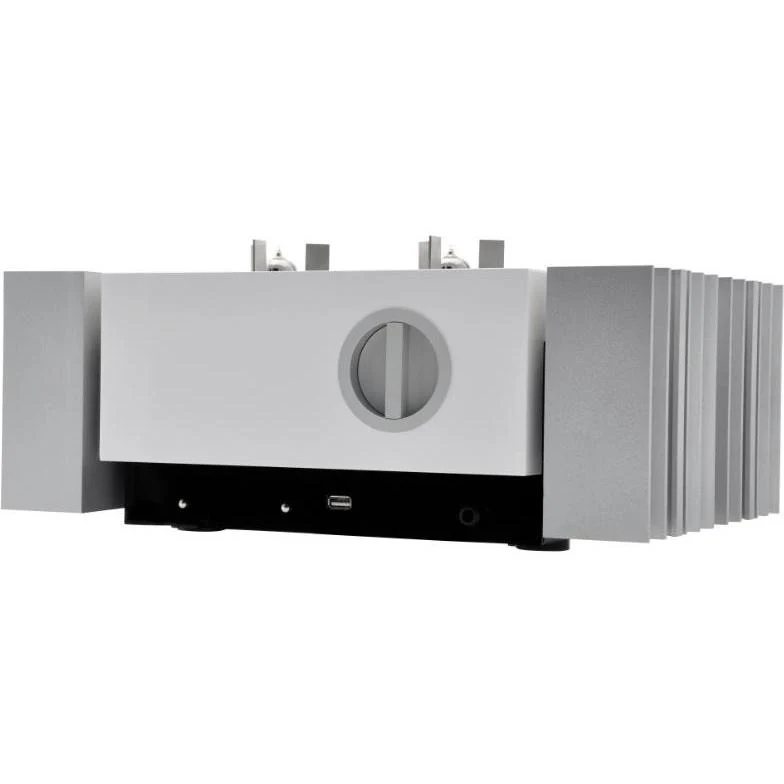

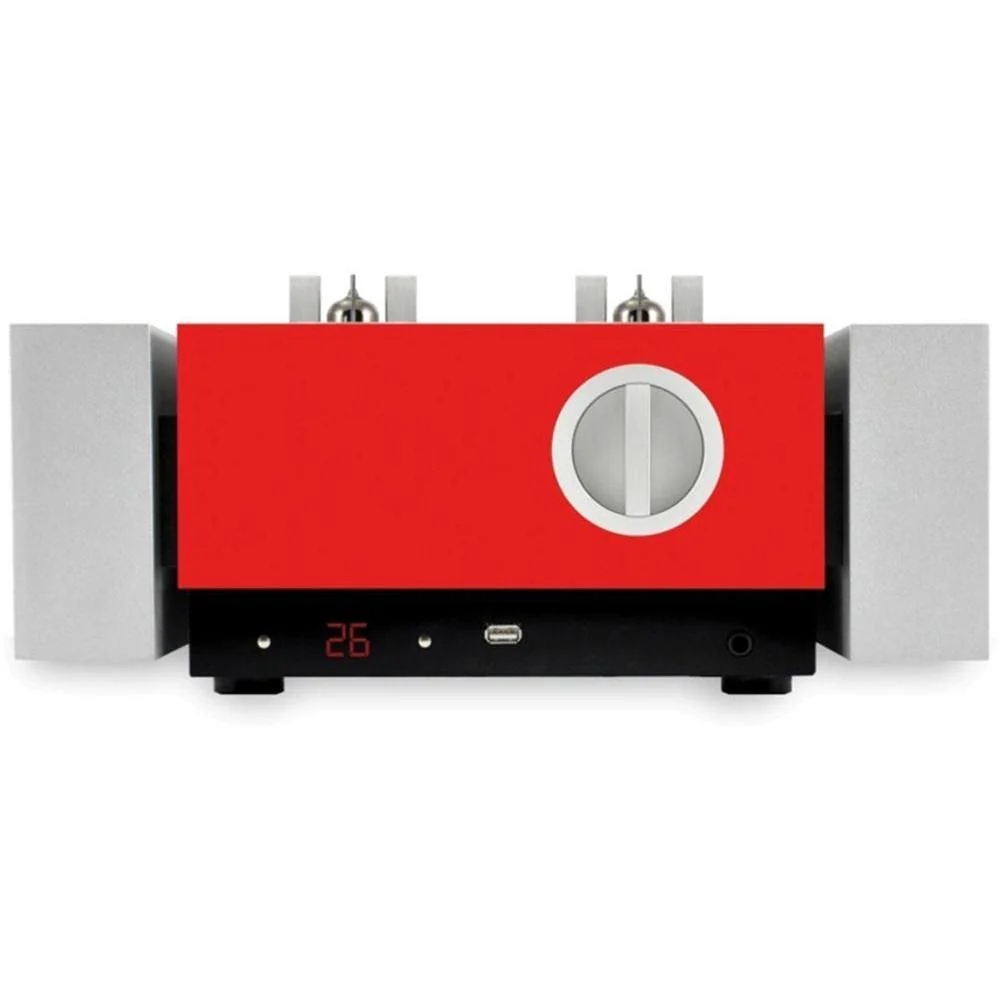

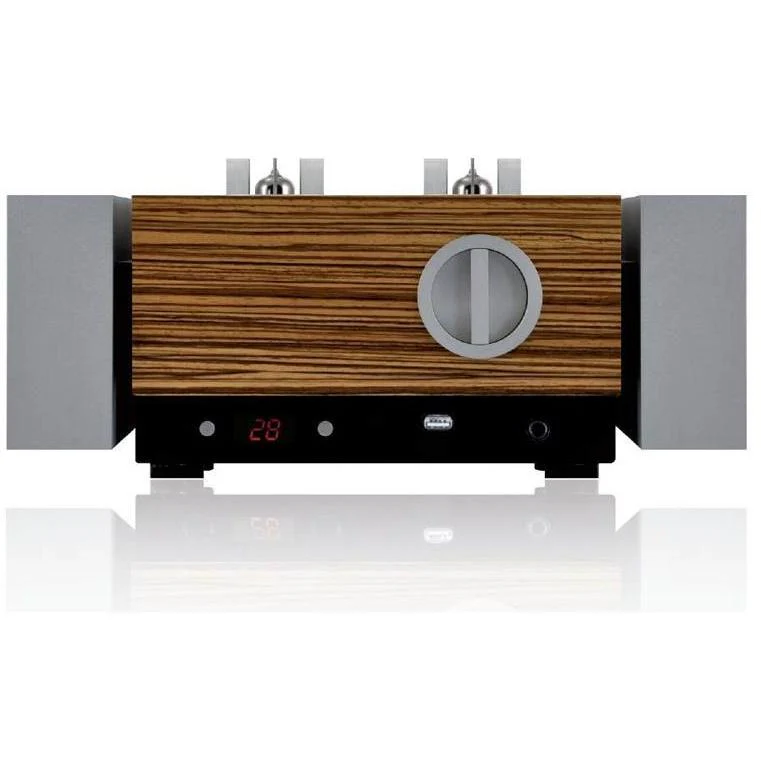

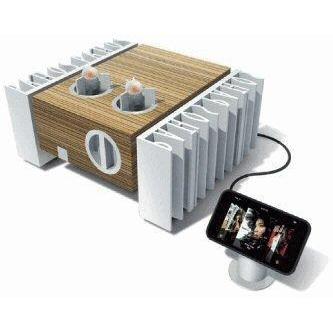

Pathos Inpol Remix MKII Integrated Amplifier

InPolRemix MkII is a fully-balanced pure Class A integrated amplifier using the latest generation double-InPol circuitry.

The digital bias/gain set technology with intelligent control is entrusted to the same microprocessor which regulates the volume, thus guaranteeing the performance of the amplifier itself and its ability to drive the loudspeakers efficiently.

Thanks to the (optional) HiDac Mk2 converter, music lovers who want the best from the latest digital sources will find their demands fully met.

InPol (Inseguitore Pompa Lineare - Linear Pump Follower) is a system patented by Pathos Acoustics which has enjoyed great success and won many awards.

Inpol devices have a special sonic personality obtainable only by means of this particular circuit design - fully balanced in Class A using a single solid state component in follower configuration, with high current gain and with voltage gain together. The valve amplifier amplifies the input signal voltage and InPol supplies the current to drive the loudspeakers without any further amplification. In this way the signal is entrusted to the valves and becomes a true copy of the original, with all the quality, purity and harmonic content of the original.

This technology allows an increase in the theoretical output in pure Class A of between 25% and 50% together with a low output impedance which is fundamental for the damping factor, and further improved by the double InPol.

Specs

AMPLIFIER
Type: Stereo integrated Pure class A
Technology: double INPOL
Balanced: (fully) dig Bias/gain set
Output power: 2 x 25W/38W (@8/4Ohm)
Freq response: 2Hz–150KHz ±0.5db
Input sensitivity: 470mVRMS
Input impedance: 47KOhm
Output polarity: Selectable by remote
Vol regulator: 2x Burr Brown PGA2310
THD: 0.1% @ 25W, SNR > 100dB
Gain: 31dB Unbal, 37dB Balanced
Output impedance 0.9Ω

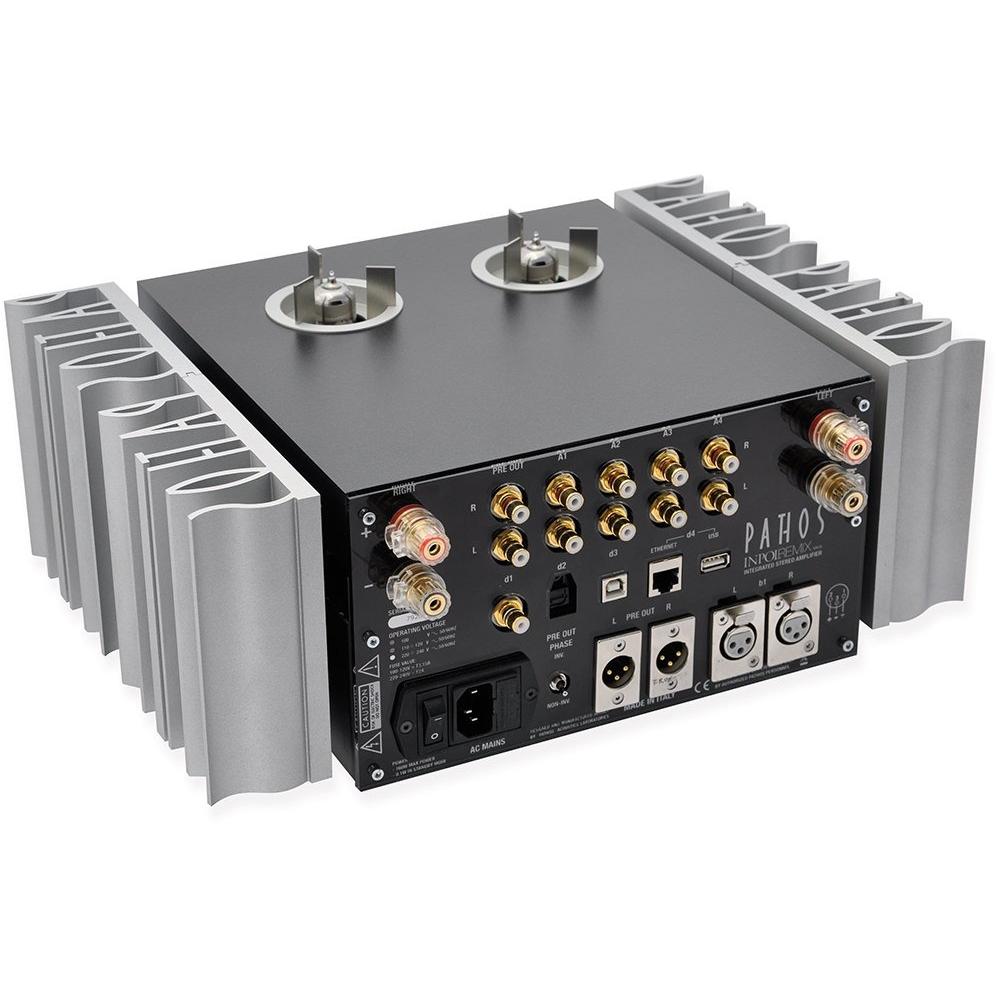

CONNECTIONS
Analogue In: Bal XRL, 4 unbal RCA
(HiDac required for below inputs)
Digital: USB port type “B”
SPDIF: coaxial/optical
Ethernet: RJ45, 2 USB port “A”
Outputs: Pre stereo line RCA
Balanced: Pre stereo line XLR
Headphone: 6.3mm jack connector



GENERAL
Dimensions (DWH): 370 x 280 x 180mm
Weight: 13.5Kg
